First, Bluetooth BQB certification overview



 Before understanding Bluetooth BQB certification, we need to understand the Bluetooth technology alliance: Bluetooth SIG, a company established by the eight major wireless communication industry giants, specializing in Bluetooth specification development, technology promotion and qualification certification, was established in 1998. The Bluetooth SIG has Bluetooth Trademarks to license its members to Bluetooth wireless technology and its registered trademarks for free, but the corresponding products must pass the Bluetooth certification, which is what everyone calls Bluetooth BQB certification, which means products with Bluetooth capabilities. Must be certified by Bluetooth BQB, otherwise the product will be considered infringed by the Bluetooth Technology Alliance. The Bluetooth SIG has more than 31,000 member companies.



However, not all Bluetooth-enabled products are called Bluetooth products. Only after the SIG (Special Interest Group) test certification meets the Bluetooth standard, is it eligible to be marketed under the name Bluetooth product. In addition, BLUETOOTH, Bluetooth and other LOGOs and logos are registered trademarks of the Bluetooth SIG organization. Products must be certified by the SIG before they can be authorized to use these logos and logos. Otherwise, it is illegal.



Second, BQB certification application mode



1, QDL (Qualified Procedure) prototype (finished product) application



2, EPL listing (Listing Type), refers to the Bluetooth BQB certification listing form, such as Bluetooth speaker finished products, if the Bluetooth module has passed BQB certification, then Bluetooth speaker this product can not re-apply BQB certification, as long as the module supply With the authorization of the merchant, the product can be uploaded to the BQB website in the form of a listing.



Third, the QDL application needs to prepare the information



1. International certification application form;



2. Block Diagram (block diagram);



3. Schematic (circuit schematic): the block diagram and the circuit schematic should correspond, and the block diagram should indicate all crystals;



4. Operational Description;



5. PCB Layout (PCB layout);



6. Fixed frequency software and debugging method;



7. Product User Guide / Product Manual;



8. Bill of Materials (Components) / Component List;



9. Technical Data Sheet of Bluetooth Antenna / Bluetooth Antenna Specification (If designed as a PCB antenna, fill in the antenna gain value directly on page 1 of this application form, the antenna specification may not be provided);



4. Information required for EPL application



1. International Certification Application Form



2. Member account



3. Authorization letter / NDA (Non-Disclosure Agreement) _PL will be used.



4.DoC/SDoC (vendor declaration) _listing will provide documentation request signature



5.1 complete machine



6. After the column is OK, the enterprise needs to purchase the DID number.



Remarks: A DID number is only for one specification module, for a company name; PL column name: Bluetooth module has a fixed hardware design, as long as the Bluetooth application (profile), the same, you can do without testing, directly listed.

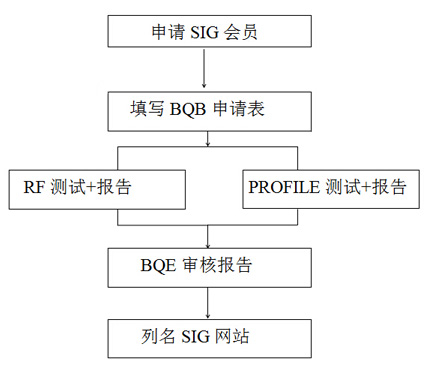

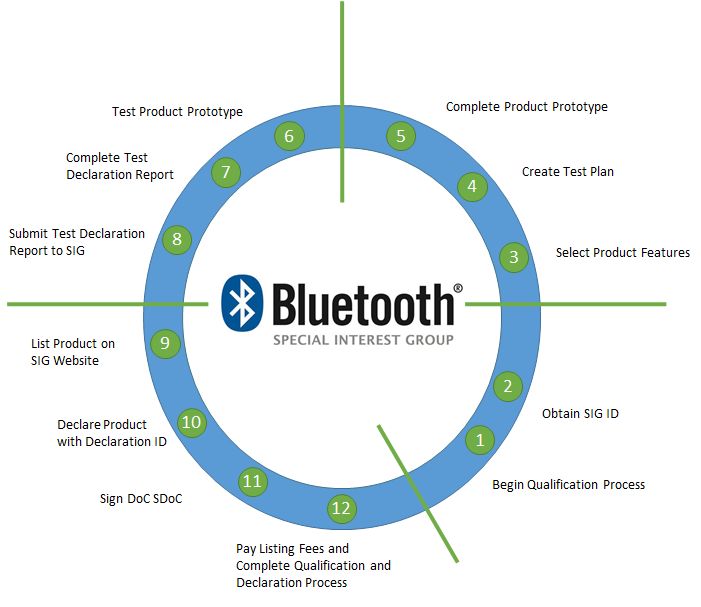

V. Application process



Note: When applying for Bluetooth BQB authentication, the registration number must be applied, that is, the QDID number.



Sixth, the use of BQB trademark



Adjusted the background color of the figure mark, changed from dark blue to bright blue, and the RGB ratio was adjusted from [R:34, G:96, B:165] to [R:0, G:130, B:252]
